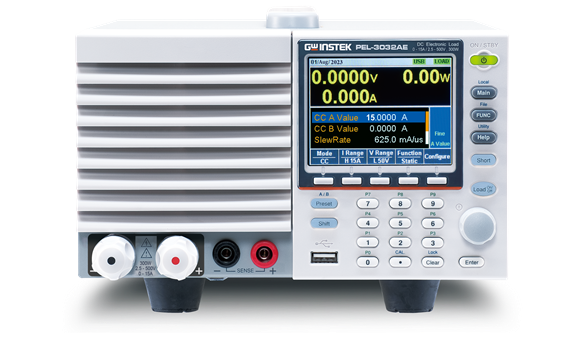

固緯GWINSTEK PEL-3000AE系列（PEL-3031AE,PEL-3032AE）
PEL-3000AE系列（PEL-3031AE,PEL-3032AE）
-
7種操作模式：CC、CV、CR、CP、CC+CV、CR+CV、CP+CV
-
可編程Fast/Normal序列功能
-
Soft Start
-
最快上升時間：2.5A/μs
-
動態模式
-
保護：OVP、OCP、OPP、OTP、RVP、UVP
-
遠程傳感
-
整合電壓、電流、功率測量功能
-
支持外部電壓、電阻控制
-
后面板BNC接口Trigger IN/OUT
-
外部模擬控制接口
-
接口:LAN/USB/RS-232C & RS-485(標配),GPIB(選配)
| 詳細規格 | |||||
| 型號 | PEL-3031AE | PEL-3032AE | |||
| 功率 | 300W | 300W | |||
| 檔位 | Low | High | Low | High | |
| 電壓 | 1~150V | 1~150V | 2.5~500V | 2.5~500V | |
| 電流 | 0~6A | 0~60A | 0~1.5A | 0~15A | |
| 最小操作電壓(DC) | 1V-6A | 1V-60A | 2.5V-1.5A | 2.5V-15A | |
| 基本模式 | |||||
| CC模式 | 范圍 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 設置范圍 | 0~6.12A | 0~61.2A | 0~1.53A | 0~15.3A | |
| 分辨率 | 0.2mA | 2mA | 0.05mA | 0.5mA | |
| 精確度 | (T *1) ± (0.1% of set +0.1% of F.S) +Vin/500 kΩ (Full scale of High range) | (T *1) ± (0.1% of set +0.2% of F.S) +Vin/500 kΩ (Full scale of High range) | (T *1) ± (0.1% of set +0.1% of F.S) +Vin/500 kΩ (Full scale of High range) | (T *1) ± (0.1% of set +0.2% of F.S) +Vin/500 kΩ (Full scale of High range) | |
| CR模式 | 范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω -50kΩ )(300W/500V) | ||
| 設置范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω -50kΩ )(300W/500V) | |||
| 分辨率(30000 steps) | 0.002S(15V) ; 0.0002S(150V) | 0.0002S(50V) ; 0.00002S(500V) | |||
| 精確度 | (T *1) ± (0.3% of set + 0.6S) + 0.002mS | (T *1) ± (0.3% of set + 0.06S) + 0.002mS | |||
| CP模式 | 范圍 | 1~15V | 1~150V | 2.5~50V | 2.5~500V |
| 設置范圍 | 0~15.3V | 0~153V | 0~51V | 0~510V | |
| 分辨率 | 0.5mV | 5mV | 1mV | 10mV | |
| 精確度 | (T *1)± (0.1% of set + 0.1% of F.S) (Full scale of Low range) | (T *1)± (0.1% of set + 0.1% of F.S) (Full scale of High range) | (T *1)± (0.1% of set + 0.1% of F.S) (Full scale of Low range) | (T *1)± (0.1% of set + 0.1% of F.S) (Full scale of High range) | |
| CP模式 | 范圍 | 0W-30W(6A) | 0W-300W(60A) | 0W-30W(1.5A) | 0W-300W(15A) |
| 設置范圍 | 0W-30.6W | 0W-306W | 0W-30.6W | 0W-306W | |
| 分辨率 | 1mW | 10mW | 1mW | 10mW | |
| 精確度 | (T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) + Vin^2/500 kΩ | (T *1)±(0.6 % of set + 1.4 % of f.s (Full scale of H range)) + Vin^2/500 kΩ | |||
| 動態模式 | |||||
| 通用 | T1& T2 | 0.05mS – 30mS / Res : 1uS; 30mS – 30S / Res : 1mS | 0.05mS – 30mS / Res : 1uS; 30mS – 30S / Res : 1mS | ||
| 精確度 | 1uS / 1mS ± 200ppm | 1uS / 1mS ± 200ppm | |||
| 斜率(精度10%) | 0.001~0.25A/uS | 0.01~2.5A/uS | 0.25mA~62.5mA/uS | 2.5mA~625mA/uS | |
| 斜率分辨率 | 0.001A/uS | 0.01A/uS | 0.25mA/uS | 2.5mA/uS | |
| 斜率設置精度 | ±(10% + 15us)* Time to reach from 10% to 90% when the current is varied from 2% to 100% (20% to 100% in L range) of the rated current. | ||||
| CC模式 | 范圍 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 設置范圍 | 0~6.12A | 0~61.2A | 0~1.53A | 0~15.3A | |
| 電流分辨率 | 0.2mA | 2mA | 0.05mA | 0.5mA | |
| 電流精確度 | ±0.8% F.S. | ±0.8% F.S. | |||
| CR模式 | 范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω -50kΩ )(300W/500V) | ||
| 設置范圍 | 60S-0.002S(0.01666Ω~500Ω)(300W/15V);6S-0.0002S(0.1666Ω -5kΩ )(300W/150V) | 6S-0.0002S(0.16666Ω~5KΩ)(300W/50V);0.6S-0.00002S(1.6666Ω-50kΩ )(300W/500V) | |||
| 設置范圍 | 30000 steps | 30000 steps | |||
| 電阻分辨率 | (T *1)±(1% of set + 0.6S) + 0.002mS | (T *1)±(1% of set + 0.06S) + 0.002mS | |||
| 測量 | |||||
| 電壓回讀值 | 范圍 | 0~15V | 0~150V | 0~50V | 0~500V |
| 分辨率 | 0.5mV | 5mV | 2mV | 20mV | |
| 精度 | (T *1)± (0.1% of rdg + 0.1% of F.S) (Full scale of Low range) | (T *1)± (0.1% of rdg + 0.1% of F.S) (Full scale of Low range) | (T *1)± (0.1% of rdg + 0.1% of F.S) (Full scale of Low range) | (T *1)± (0.1% of rdg + 0.1% of F.S) (Full scale of Low range) | |
| 電流回讀值 | 范圍 | 0~6A | 0~60A | 0~1.5A | 0~15A |
| 分辨率 | 0.2mA | 2mA | 0.05mA | 0.5mA | |
| 通用 | (T *1)± (0.1% of rdg + 0.1% of F.S) (Full scale of High range) | (T *1)± (0.1% of rdg + 0.2% of F.S) (Full scale of High range) | (T *1)± (0.1% of rdg + 0.1% of F.S) (Full scale of High range) | (T *1)± (0.1% of rdg + 0.2% of F.S) (Full scale of High range) | |
| 通用 | |||||
| 觸發輸入/輸出端(BNC) | YES | ||||
| 電流監測輸出 | YES | ||||
| 外部模擬控制 | YES | ||||
| 軟啟動 | YES | ||||
| 序列功能(Normal/Fast) | YES | ||||
| BATT 自動測試 | YES | ||||
| OCP自動測試n | YES | ||||
| OPP自動測試 | YES | ||||
| 預設值 | 10 Sets | ||||
| 保護 | OCP, OPP, UVP, OVP, OTP, RVP | ||||
| 其它 | |||||
| 電源輸入 | 100-120VAC/ 200-240VAC, 47-63Hz | ||||
| 接口 | LAN/USB/RS-232C & RS-485, Analog external control， GPIB(Option) | ||||
| 尺寸 & 重量 | 213.8(W) x 124.0(H) x 400.5(D)mm, Approx. 7.5Kg | ||||
附件
CD ROM(使用手冊、編程手冊、快速指南)×1
電源線(依區域)×1
前端墊圈(M6)×2
GTL-105A遠端電壓感測線，紅×1，黑×1
選件
GTL-246 USB線( Type A -Type B)
GTL-248 GPIB線,2米
GTL-259 RS-232線(DB9轉RJ45)
GTL-260 RS-485線(DB9轉RJ45)
GTL-261 Serial Master Cable+Terminator, 0.5m
GTL-262 RS-485 Slave cable
GRA-414-J 機架安裝套件(JIS)
GRA-414-E 機架安裝套件(EIA)
PEL-010 濾塵器
PEL-004 GPIB接口

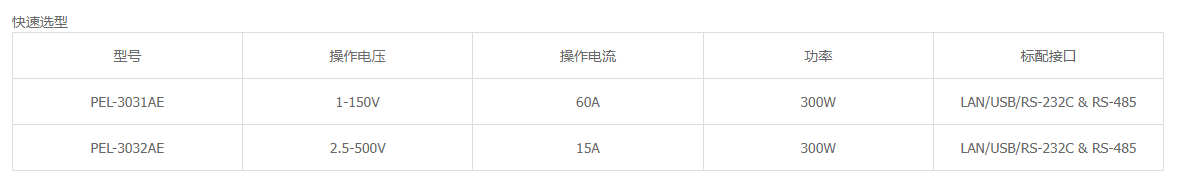

PEL-3031AE 150V/60A/300W可編程單通道直流電子負載
PEL-3032AE 500V /15A/300W可編程單通道直流電子負載
